RLE based Connected Component analysis Library

5-6× Faster than OpenCV in WithStats Mode.

C99. Zero Allocations. Zero Dependencies.

Complete & Flexible Determinism.

FlyRLECCL is a production-ready, dependency-free C99 SDK engineered specifically for mission-critical embedded vision, smart cameras, medical imaging, and high-throughput document processing. It replaces bloated, non-deterministic frameworks with a hyper-optimized, single-pass RLE engine.

The Core Value: Why Technical Buyers Choose FlyRLECCL

When integrating Connected Component Analysis (CCA) into real-time production systems, modern engineering teams face a strict trade-off between throughput and memory reliability. FlyRLECCL eliminates this compromise.

Hardcore Performance vs. OpenCV (WithStats)

Tested on industry-standard benchmarks (YACCLAB and Tobacco800 datasets), FlyRLECCL drastically reduces CPU cycle consumption:

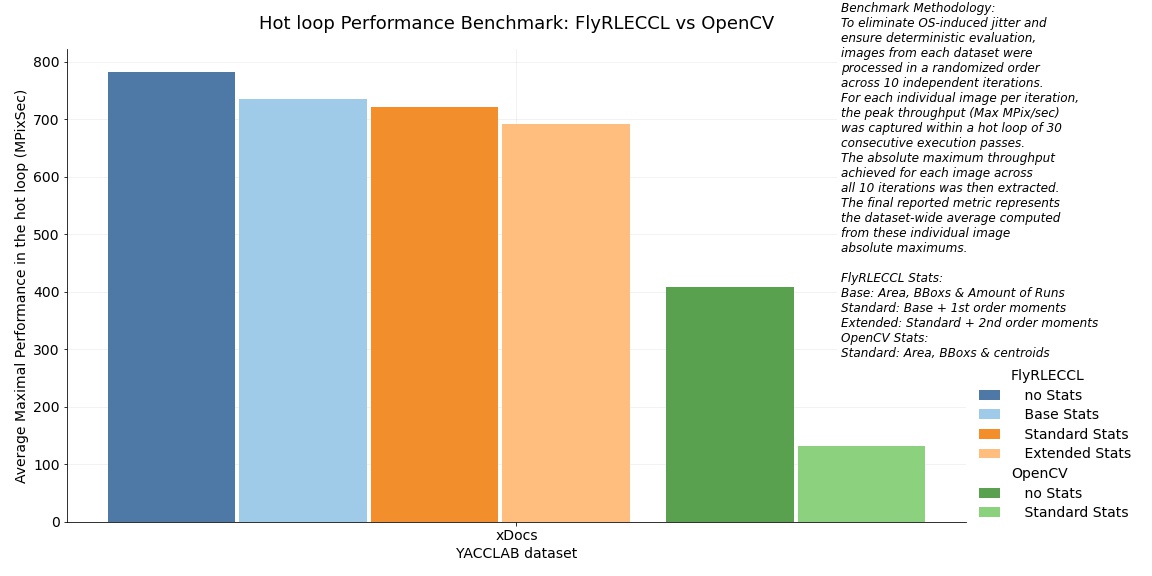

Component Statistics Are Customizable and Virtually Free

In standard computer vision workflows, enabling geometric statistics often introduces a severe performance penalty. For instance, moving from pure labeling to feature extraction in OpenCV results in a massive throughput degradation on realistic production workloads. Benchmark data reveals a 191.5% overhead on the Medical dataset (from YACCLAB) and a 221.0% overhead on the Tobacco800 dataset (via UCSF Truth Tobacco Industry Documents) just to compute basic component metrics—a systematic behavior widely documented by developers in standard profiling scenarios (e.g., Stack Overflow #52260829)

FlyRLECCL completely rearchitects this step. By computing topological and spatial metrics natively at the interval (RLE) level during the core extraction phase, the computational "tax" is drastically minimized. Moving from pure labeling to feature extraction introduces a negligible overhead of only:

More details on the benchmark results are presented in the section Benchmarks.

FlyRLECCL delivers a comprehensive analytical dataset out-of-the-box, turning what is traditionally a heavy secondary computing step into an immediate, zero-allocation asset:

Benchmark Results

YACCLAB Benchmark

Standard YACCLAB benchmarks measure performance up to the final generation of a dense label map, which is the primary and definitive output of traditional raster-based CCL algorithms. However, the core FlyRLECCL architecture computes component statistics without ever expanding data into a heavy dense array. To ensure a rigorous and transparent performance evaluation, the YACCLAB Average Runtime Tests with Steps protocol was utilized. This approach isolates the net execution time of individual algorithmic stages (excluding allocation and deallocation overhead).

To evaluate FlyRLECCL within identical formatting constraints (mapOut mode), the net total time required to return a standard dense label map was measured (represented by the FlyRLECCL mapOut bar on the plot below). Crucially, to demonstrate the true efficiency of the RLE-native workflow, the net execution time required to yield the final Array of Structures containing labeled runs was captured as a standalone first-step metric (represented by the FlyRLECCL runsOut bar). This methodology shifts the benchmark focus from merely producing identical output formats to evaluating the time required to achieve identical conceptual results — since both labeled runs and dense label maps contain the complete, lossless information regarding the exact pixel composition of each image component.

For visual clarity and cross-dataset readability, all performance metrics within the YACCLAB benchmark were normalized against the baseline execution time of FlyRLECCL in mapOut mode. This normalization eliminates the significant variance in absolute execution times caused by inherently different dataset characteristics, establishing a stable reference point for relative performance evaluation.

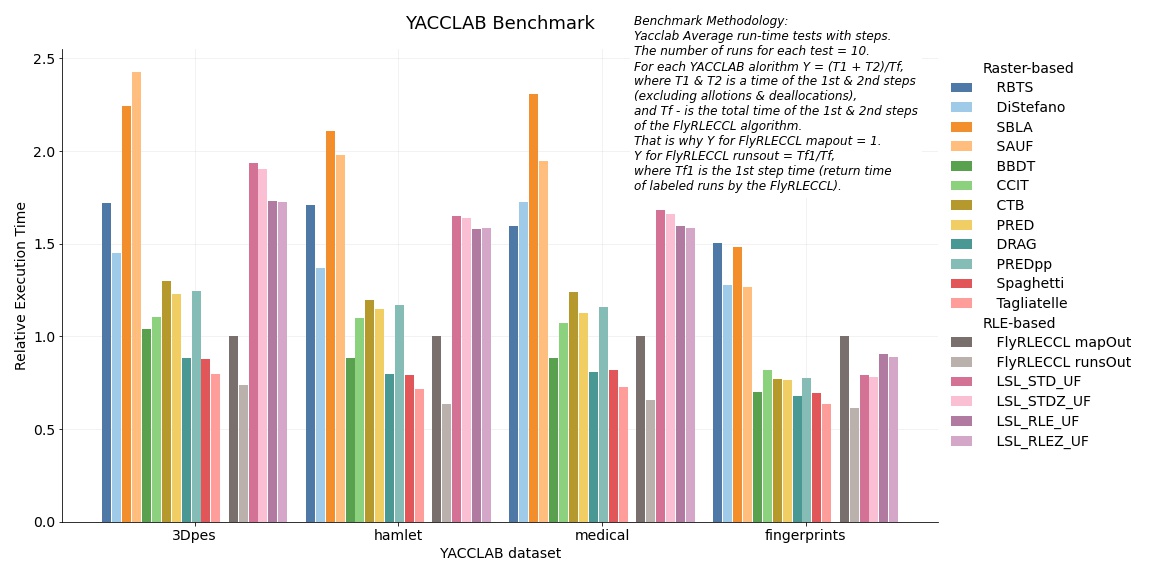

The consolidated performance metrics across all evaluated datasets and algorithms are presented in the relative benchmark chart below:

Summary results of the YACCLAB tests

Performance Analysis: mapOut Mode

When evaluated strictly within the mapOut formatting constraints — which natively favor traditional raster-based architectures — FlyRLECCL demonstrates highly competitive scalar throughput. On the majority of standard YACCLAB datasets (hamlet, medical, and 3Dpes), the performance deficit of FlyRLECCL remains limited to only three top-tier raster algorithms. Specifically, the processing throughput is trailing DRAG and Spaghetti by an average of 20%, and Tagliatelle by approximately 33%. A more pronounced gap is confined exclusively to the fingerprints dataset, where the execution overhead reaches up to 53% relative to Tagliatelle.

To contextualize these metrics within the RLE domain, LSL_RLE (the historically recognized leader among RLE-based algorithms) exhibits a significantly wider performance gap relative to raster alternatives across nearly all benchmarks. On average, across the hamlet, medical, and 3Dpes datasets, Tagliatelle outperforms LSL_RLE by a substantial 118% in mapOut mode.

The only inversion of this trend occurs exclusively within the fingerprints dataset, where LSL_RLE displays a slight throughput advantage over FlyRLECCL, leading by approximately 11% to 12% in dense map generation.

FlyRLECCL Performance Analysis: runsOut Mode vs mapOut Mode

Comparing runsOut mode with mapOut mode clearly quantifies the performance penalty introduced by dense map reconstruction. Reconstructing the full pixel label map from the finalized, labeled Array of Structures (AoS) increases total processing time by an average of 36% on the 3Dpes) dataset. For all other evaluated datasets, this formatting overhead escalates significantly, surpassing 50% and peaking at a 62% increase in execution time on the fingerprints dataset.

These metrics demonstrate that bypassing dense matrix reconstruction allows FlyRLECCL to retain substantial computational resources that are traditionally wasted during the final formatting stages of raster-based pipelines.

Performance Analysis: FlyRLECCL runsOut Mode vs Raster Baseline

When comparing FlyRLECCL operating in its native runsOut mode (bypassing map reconstruction entirely) against the native execution times of raster-based algorithms, the architectural advantage becomes clear. In its native configuration, FlyRLECCL delivers higher throughput than every single evaluated raster YACCLAB algorithm. Specifically, it outperforms the world's leading raster implementation (Tagliatelle) by an average of 8% across all datasets, ranging from a 3.3% speedup on fingerprints to an 11.6% performance advantage on the hamlet dataset.

Conclusion on YACCLAB Benchmarks

Ultimately, comparing the performance profiles of runsOut and mapOut modes demonstrates that dense map reconstruction introduces an unnecessary processing bottleneck for subsequent analysis. These metrics prove that by eliminating dense matrix inflation, FlyRLECCL preserves substantial computational resources that are traditionally wasted during the final formatting stages of raster-based pipelines.

Performance Benchmark: FlyRLECCL vs. OpenCV (With & Without Statistics)

To evaluate the true computational overhead of component analysis and compare FlyRLECCL against established industry standards, an independent, high-precision benchmarking framework was developed.

In this evaluation, FlyRLECCL was pitted against OpenCV 4.5.5-x64—the recognized open-source standard for computer vision pipelines. To provide a fair and comprehensive architectural breakdown, both libraries were evaluated across different operational modes representing varying levels of telemetry extraction:

  • OpenCV | No Stats: Evaluated using cv::connectedComponents, returning only the baseline label matrix.
  • OpenCV | Standard Stats: Evaluated using cv::connectedComponentsWithStats, which extracts the standard industry telemetry packet: Area, Bounding Box (BBox), and Centroids.
  • FlyRLECCL | No Stats: Operating in the native core runsOut mode, yielding only the labeled run structures.
  • FlyRLECCL | Base Stats: Extracting Area, BBox, and an additional native RLE-specific parameter: the amount of runs per component (n_runs).
  • FlyRLECCL | Standard Stats: Extracting all parameters from Base Stats plus first-order moments. This setup is functionally equivalent to OpenCV's | Standard Stats, as centroids are mathematically derived directly from first-order moments.

Rigorous Testing Methodology

To ensure maximum reproducibility, eliminate OS-induced jitter (such as thread scheduling and background processes), and guarantee deterministic evaluation, the benchmark utilized a multi-tier peak-extraction protocol:

  1. Randomized Execution: Images within each evaluated dataset were processed in a strictly randomized order across 10 independent macro-iterations. This prevents the CPU from optimizing memory access paths based on predictable image sequences.
  2. Hot-Loop Micro-Testing: Within each macro-iteration, every individual image was processed inside a hot loop of 30 consecutive execution passes. The peak throughput (Max MPix/sec) was captured from this loop, isolating the algorithm’s performance from cold-start cache misses.
  3. Absolute Peak Extraction: For every image, the absolute maximum throughput achieved across all 10 independent macro-iterations was extracted.
  4. Dataset-Wide Averaging: The final metrics presented in the chart represent the dataset-wide average computed from these individual, isolated image absolute maximums.

Environment & Compilation Flags

To guarantee a stable and reproducible execution profile, the entire benchmark was built and executed under the following strict environment constraints:

  • Hardware Configuration: Tested on a single core of an Intel Core i7 processor clocked at 2.0 GHz with 6 GB of RAM.
  • Operating System: Windows 64-bit, locked into High-Performance Power Mode to eliminate CPU frequency throttling and power-saving latency spikes.
  • Compiler & Toolchain: Compiled using the MinGW toolchain.
  • Optimization Flags: Built with -O3 -DNDEBUG (automatically injected via CMake’s Release build type).
  • Strict Diagnostics: Built with -Wall -Wextra -Wpedantic enabled via target_compile_options to ensure absolute C99 standard compliance and zero compiler warnings.

Memory Management & Algorithm Details

Replicating the rigorous constraints of the YACCLAB framework, all dynamic memory allocations and deallocations were excluded from the execution timers to isolate net algorithmic throughput. However, a critical architectural distinction regarding OpenCV must be noted:

  1. FlyRLECCL Memory Isolation: All working buffers were pre-allocated outside the benchmark loop, ensuring a strictly zero-allocation profile during the hot execution cycle.
  2. OpenCV Memory Constraint: While all output images and primary buffers for cv::connectedComponents and cv::connectedComponentsWithStats were pre-allocated and passed directly into the API to prevent mid-loop reallocations, OpenCV’s internal architecture mandates the dynamic allocation of a working buffer for its parents table on every call. Because OpenCV does not provide an API to pass an external pointer for this specific structure, this internal allocation overhead is inherently included in OpenCV's net execution time.
  3. Default CCL Engine: For all OpenCV evaluations, the default Connected Component Labeling algorithm was utilized. Starting with OpenCV version 4.5, this default is the Spaghetti algorithm.
  4. High-Precision Timing: Execution time was captured with sub-millisecond precision using the native Windows QueryPerformanceCounter (QPC) hardware timer via QueryPerformanceFrequency, eliminating any interference from system clock drifts or OS-level adjustments.

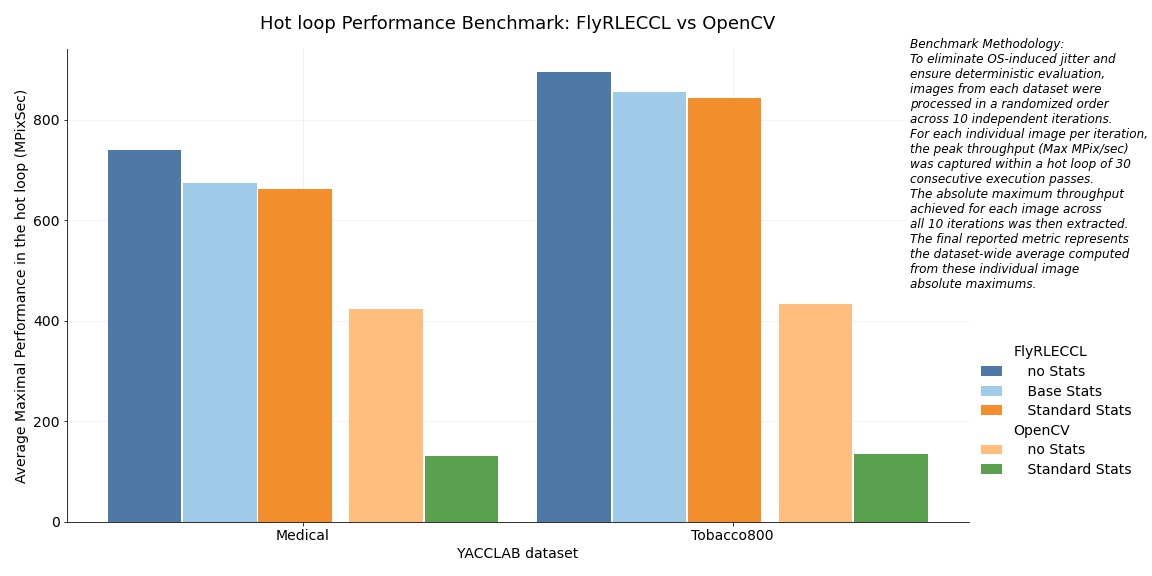

The consolidated throughput metrics across all evaluated datasets and operational modes for FlyRLECCL and OpenCV 4.5.5-x64 are presented in the benchmark chart below:

Summary results of the YACCLAB tests

1. Baseline (No Statistics Mode) Performance: FlyRLECCL vs. OpenCV

When operating in the baseline mode without telemetry extraction (runsOut for FlyRLECCL and cv::connectedComponents for OpenCV), the dataset-wide average metrics reveal a massive performance gap. FlyRLECCL demonstrates a 75% throughput advantage on the Medical dataset (FlyRLECCL: 739.9 MPix/sec vs. OpenCV: 422.5 MPix/sec) and an 106% advantage on Tobacco800 (FlyRLECCL: 895.4 MPix/sec vs. OpenCV: 434.2 MPix/sec).

These findings yield three critical architectural insights:

  • Validation of RLE Efficiency: These real-world results align with the YACCLAB benchmarks, confirming that FlyRLECCL’s native RLE-structured output (runsOut) is inherently faster to generate than a raster algorithm's native dense label map.
  • The OpenCV Wrapper Overhead: While the pure Spaghetti algorithm in YACCLAB maintained a tight race with FlyRLECCL (trailing by only 11.6% to 19.8% depending on the dataset), OpenCV’s implementation of the exact same algorithm suffers a massive >50% performance overhead. This heavy penalty is highly likely caused by the dynamic allocation of the internal parents working buffer within the execution loop, a constraint completely bypassed by FlyRLECCL's zero-allocation design.
  • Data Dependency vs. Uniform Latency: The data demonstrates that OpenCV’s throughput remains rigidly uniform regardless of the image content. In contrast, FlyRLECCL’s performance is highly adaptive, showing a strong sensitivity to scene density and object morphology. Because Medical and Tobacco800 feature distinctly different pixel distributions, FlyRLECCL dynamically capitalizes on RLE-friendly structures, maximizing execution speed where raster approaches remain locked in static iteration loops.

2. Statistics Extraction Overhead: FlyRLECCL vs. OpenCV

Analyzing the execution penalty of enabling telemetry highlights the massive superiority of FlyRLECCL compared to OpenCV:

  • FlyRLECCL (Base Stats): Extracting Area, BBox, and n_runs introduces a near-negligible average overhead of only 9.85% on the Medical dataset and drops to a mere 4.74% on Tobacco800.
  • FlyRLECCL (Standard Stats): Adding first-order moments (M1) shifts the overhead tightly to 11.69% for Medical and 6.27% for Tobacco800. This confirms that telemetry extraction within FlyRLECCL is highly optimized, keeping the primary scan execution path clean and fast.

This confirms that telemetry extraction within FlyRLECCL is highly optimized, keeping the primary scan execution path clean and fast.

In stark contrast, OpenCV’s statistics extraction penalty is staggering and prohibitive, consistently exceeding the 200% threshold:

  • OpenCV (Standard Stats Wrapper Penalty): Enabling statistics via cv::connectedComponentsWithStats inflicts a massive 224.22% performance penalty on the Medical dataset and 220.96% on Tobacco800.

This data demonstrates that while extracting standard component statistics effectively triples OpenCV's execution time, FlyRLECCL processes the same analytics virtually for "free."

3. Final Performance Contrast: Standard Statistics Mode

When comparing both libraries with telemetry extraction enabled (FlyRLECCL Standard Stats vs. OpenCV cv::connectedComponentsWithStats), FlyRLECCL delivers its most substantial performance advantage:

  • Medical Dataset: FlyRLECCL outperforms OpenCV by a factor of 5.08×.
  • Tobacco800 Dataset: FlyRLECCL outperforms OpenCV by an average factor of 6.23×, with peak performance differentials reaching up to 8.14×.

This benchmark of the FlyRLECCL's scalar module demonstrates that low-level algorithmic optimization can redefine performance boundaries without requiring specialized hardware upgrades or complex vectorization.

Architectural Comparison: FlyRLECCL vs. OpenCV

Feature OpenCV
(cv2::connectedComponentsWithStats)
FlyRLECCL
(with Standart Statistic Layout)
Execution Pattern Two-pass pixel dense scanning Two-pass RLE merge
Data Layout of Labeling Results Dense Array of Labels Array of Structures (labeled runs)
Dynamic Allocations Yes Strictly Zero (Pre-allocated buffers)
Memory Fragmentation Risk High (Unsuitable for critical embedded) None (100% Deterministic)
Overhead on Standart Statistics Severe performance drop (200-300%) Minimal performance drop (6% – 14%)
Native Count Metric No (Built-in Parameter - Amount of Runs)

Low-Level Optimization & Hardware Efficiency

Predictive Memory Scaling & "Resume Mode"

Unlike video frames or image matrices, where dimensions are known and fixed in advance, the number of connected components is entirely unpredictable prior to execution. This introduces a critical architectural problem for embedded and real-time systems, forcing developers into a destructive trade-off.

The Static Allocation Dilemma:Standard Computer Vision libraries force developers to budget memory for the catastrophic worst-case scenario (e.g., maximum noise), permanently locking down vast amounts of RAM that go unused 99% of the time.

The Static Allocation Dilemma

To maintain deterministic execution without runtime failures, developers are locked into a binary choice:

The FlyRLECCL Solution: Controlled Budgets and Actionable Telemetry

FlyRLECCL completely resolves this dilemma by pairing a strict zero-allocation model with a specialized Resume Mode for component statistics collection. Instead of budgeting for impossible edge cases, system architects can aggressively minimize the active memory footprint by allocating a micro-buffer scaled to a tight, realistic confidence interval of expected components.

If scene complexity unexpectedly spikes and the number of objects exceeds your allocated boundary, FlyRLECCL safely halts processing and instantly returns FLY_STATUS_STATS_BUFFER_TOO_SMALL. Crucially, even when halting, the engine still writes the exact number of detected components to your n_components pointer. This transforms what is traditionally a fatal application crash into clean, actionable telemetry.

Advanced Pipeline Strategies via Resume Mode

Because n_components is always populated, system engineers can implement highly flexible, adaptive memory and processing strategies inside the hot loop:

By exposing these granular states, Resume Mode provides system engineers with the precise telemetry needed to build robust, flexible, adaptive, and highly deterministic processing pipelines without relying on rigid worst-case constraints or reallocation inside the hot loop.

Integration-Ready: Simple C99 API

Integrating FlyRLECCL into your proprietary software or hardware pipeline takes less than an hour:

Simultaneous Multi-Module Linking (No Conflicts)

Project Roadmap

Commercial Licensing & Integration

FlyRLECCL is distributed as optimized, pre-compiled binary modules (available for major architectures and embedded toolchains, including x86_64, ARM Cortex-A/M, and specialized DSPs).

Every hardware production scale, budgeting cycle, and compliance framework is unique to every enterprise, so to seamlessly align with your business logic, we offer flexible, tailor-made licensing structures instead of rigid, one-size-fits-all contracts.

Available Licensing Frameworks

Comprehensive Integration Support

Every commercial agreement is backed by engineering-focused support to ensure frictionless deployment:

Let’s build the right framework for your pipeline:

We adapt our agreements to your exact deployment scope—whether you are launching a single highly-specialized medical device line or deploying cross-platform smart camera arrays. Contact our licensing team to discuss your operational constraints, request a customized price quote, or align on a contract structure that fits your business model.

Evaluate FlyRLECCL on Hardware

See the exact speedup on your target platform before writing a single line of code. We provide a lightweight, dependency-free CLI demonstration engine. Run it against your proprietary datasets and benchmark it side-by-side with your current pipeline.

1. Request the Evaluation Binary or Static Module

To test the core engine performance on your specific architecture (x86, ARM Cortex, or embedded RTOS), you can request a compiled CLI demo executable or a static library module under a time-limited Trial Evaluation License to benchmark it directly inside your application.

2. Integration & Technical Validation

Already running the demo or need to map FlyRLECCL into your existing data pipeline? Connect directly with the core development architecture team to resolve alignment contracts, custom memory padding, or boundary behaviors.

3. Commercial Licensing

Ready to deploy FlyRLECCL into production? Request production-ready SDK binary access tailored to your hardware target, get volume pricing structures, or discuss the best contract alignment for your business model—whether you require our B2B Royalty-Free Licensing for unlimited deployment, volume-scaled Per-Device Licensing, or another Custom/Hybrid Licensing Models.
